Three - Side Seal Pouch Making Machine WTP - HD -BU

This machine can heat seal a variety of laminated film into 3-side seal bags. High speed up to 200 strokes/min . Max.3 -side seal bag wdith 600mm
Availability:
Inquire

  • WTP - HD -BU

Main Specifications


OptionalModelWTP - HD - 60BU
Film MaterialCPP,PET,OPP,PAPER & all kinds of laminating films
Film Size
Main Film Max. Width
1200mm
MainFilm Max. Diameter
Φ800mm
Rewinding From of FilmMain films horizontal film axis type

M -plate mode

Tension Control Magnetic Brake;

AC motor driving system with inverter

Detection of printing color label by color label sensor
Bag - Making Functioncan heat seal a variety of laminated film into 3-side seal bags
Bag - Making  Speed200Cuts/min;
Bag - Making Size  (mm)

Bag Length :50 -300 ;

Bag Width : 600 ;

Skip Feed Function
400mm for one time,more than 400mm,used  skip feed feature ,maximum is 6 times
Electrical Matching

Total Power:.40 KW;

Gas Pressure : 0.6MPa;

Colling Water : 15L/min

Occupying AreaApprox. 8.5m*2.5m
Gross WeightApprox.5t
Optional  Equipment

  • Double cutter

  • Die - cutting machine

  • No-stop film accumlator

  • Ultrasonic heater

  • Pneumatic loading device (in unwind section)


Operation & Functional


  • Temperature: contactless automatic control, dispaly on LCD

  • Automatic counter : pesettable counter

  • Conveyer: conveying capacity is presettable

  • Punching devive: time,continauation and interval are  presettable

  • Starting mode: can select feeding start or sealing start

  • Working mode: printing ,non-print

  • Linear measure : photoe lectric measure between color code

  • Alarm: photoe lectric signal loss, temperature  loss, unwinding alarm,servo motor alarm, tension alarm with automatic stop.


Previous:
Next:

If you need to learn more about this device parameter , Or you need customized equipment,You can contact us:

Contact us

GUESS YOU LIKE

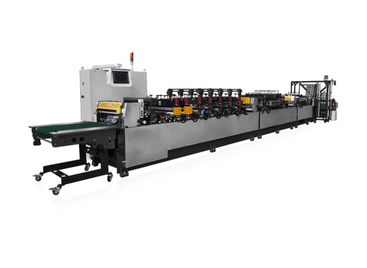

Center Seal Pouch Making Machine - Heavy Packaging Series WTP - HD - BTZ
Center Seal Pouch Making Machine - Heavy Packaging Series WTP - HD - BTZ
can be used to produce pouches for one-time packing of goods over 5kg . Center seal  gusset bag and 4 - side seal bag.
0
0

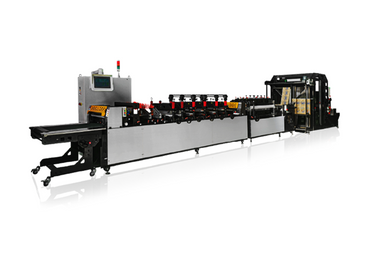

Center Seal Pouch Making Machine Light & Heavy packaging series WTP - HD - BTQZ
Center Seal Pouch Making Machine Light & Heavy packaging series WTP - HD - BTQZ
can be used to produce pouches for 30 gm to 15kg . Center seal gusset bag and 4 - side seal bag .
0
0

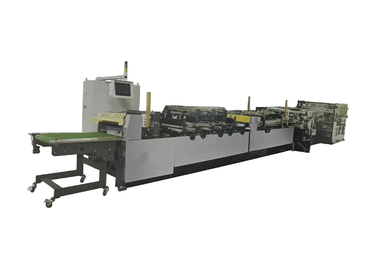

Multi-functional Center Seal Pouch Making Machine WTP - HD -BTZMML
Multi-functional Center Seal Pouch Making Machine WTP - HD -BTZMML
Producible pouch / bag shapes include : Center seal bag,Center seal gusset ,4 -side seal bag, 3 - side seal bag,3-side seal zipper bag,stand - up pouch from one web,stand - up pouch gusset insert.
0
0
Three - Side Seal Pouch Making Machine WTP - HD -BU
Three - Side Seal Pouch Making Machine WTP - HD -BU
This machine can heat seal a variety of laminated film into 3-side seal bags. High speed up to 200 strokes/min . Max.3 -side seal bag wdith 600mm
0
0

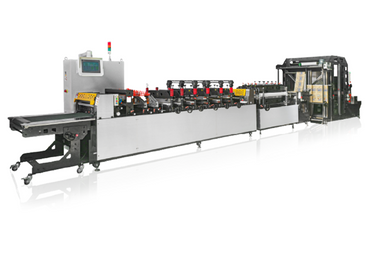

3 side seal, stand-up, zipper bag making machine WTP - HD -BUML
3 side seal, stand-up, zipper bag making machine WTP - HD -BUML
Can produce various pouches such as three side sealing bag, 3 - side seal bag, 3 - side seal bag with zipper,stand - up pouch from one web with zipper
0
0

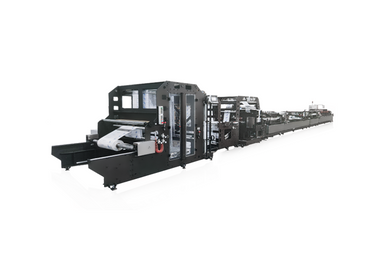

Automatic High Speed Flat Bottom Bag Making Machine WTP - HD -BF
